According to"National Anti-Drug Work Conference"Indication,CloudOptek launched an intelligent anti-drug IoT fentanyl solution

Drugs are a scourge to all humanity,Drug abuse has become a serious social problem,Drug proliferation poses severe challenges to anti-drug efforts.National Anti-Drug Work Teleconference4Month1Held in Beijing on,State Councilor,Director of China’s National Narcotics Control Commission,Minister of Public Security Zhao Kezhi attended and delivered a speech.He emphasized,Efforts should focus on enhancing technological application capabilities,Vigorously advance smart anti-drug initiatives,Build national drug laboratories to high standards,Deepening anti-drug technological innovation,Strengthening anti-drug technological R&D,Effectively enhance drug testing and identification capabilities,Capabilities in prediction, early warning, prevention, and precise打击 of drug-related crimes.Enhance international cooperation,Pragmatically advancing international anti-drug cooperation.Enhance coordination capabilities,Actively promote party committees to prioritize anti-drug work,Strengthen collaborative efforts in anti-drug work,Strictly implementing leadership responsibility system for anti-drug work,Actively implements anti-drug work deployments.

Drugs include narcotics and psychotropic substances,Usually white powder,Since criminals often use flour,Disguised or masked as sugar, etc.,Causes difficulties for customs inspections.Compared with traditional drug testing methods:Thin-layer chromatography,Infrared spectroscopy,GC-MS methods, etc.,Raman spectroscopy provides unique fingerprint spectra for each substance without sample preparation,Non-contact,Features such as rapid detection,Its advantages are becoming increasingly prominent,Becomes a new weapon for rapid and accurate drug testing.

CloudOptek Optics aims to integrate advanced internet tech with traditional instrumentation,Build"Cloud-Network-End"Integrated intelligent detection platform,Enables device-cloud,Secure interconnection and interoperability between devices(Internet of Things (IoT)).Since company registration, all business operations have progressed steadily and rapidly,Product R&D momentum is particularly strong,Flagship products—cloud-intelligent Raman drug analyzer and cloud-intelligent handheld area-scanning drug analyzer—excel in Raman drug detection.

Smart devices

One,Cloud-intelligent Raman drug analyzer

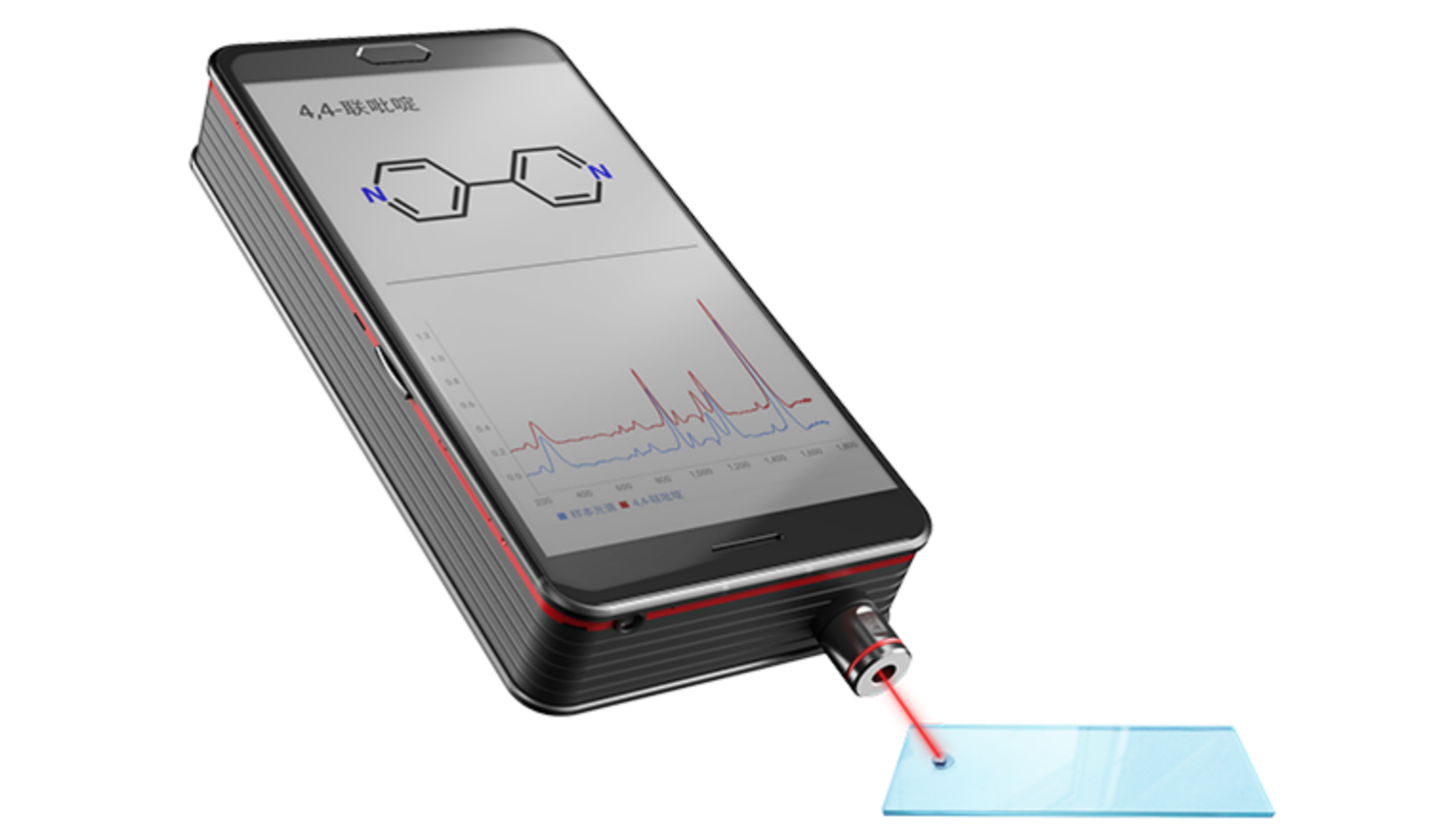

The Cloud-Connected Intelligent Raman Drug Analyzer is the world’s first Raman spectrometer integrated with artificial intelligence,Adopts fifth-generation Raman technology(Mainly includes transmission volume phase gratings(VPG),Spatial direct coupling and confocal technologies, etc.),Capable of precisely identifying substance types and proportions within mixtures from massive datasets,Achieves compact size,High-throughput Raman signal acquisition,Its sensitivity is [multiple] times that of traditional Raman devices10Times,And makes drug detection easier,Precursor chemicals and fentanyls, among other new psychoactive substances.Compact device size,Lightweight,Fast speed(Less than3Seconds,Detection speed is times faster than other Raman devices on the market10Times),High accuracy(Greater than99%),Unaffected by environmental interference,Highly scalable;High sensitivity,Can detect concentrations as low as3%Ethanol;Proprietary deep learning algorithms continuously improve accuracy with use,Breakthrough rapid mixture component ratio analysis provides users with more valuable information;Modular design improves system consistency,Facilitates mass production;Cloud-terminal architecture: multiple Raman units share one brain with real-time DB updates,Ensures enhanced product intelligence and greatly expanded scenarios,Solves the database update challenges faced by other Raman products on the market,Additionally, in anti-fluorescence interference mode, it can detect heroin,Recognition of fentanyl and other fluorescence-interfering substances.

Furthermore,Product has passed testing by the Testing Center of the First Research Institute of the Ministry of Public Security.On2019Year2Won the highest honor in optics at the SPIE Photonics West exhibition in the U.S."Prism Award"(Prism Award),It is reported that,This is the first time a Chinese company has received"Prism Award".""Prism Award"Established in2008Year,Dubbed"Oscars of the optoelectronics industry",Aimed at recognizing excellence in optics,Innovative breakthrough in photonics and imaging science,And solve implementation issues through optical technology,New inventions and products that improve life.

Same year,Awarded in the U.S.2019Annual"Innovation award" Platinum Award,This is the first time a Chinese company has won the Prism Award"Innovation award" Platinum Prize.

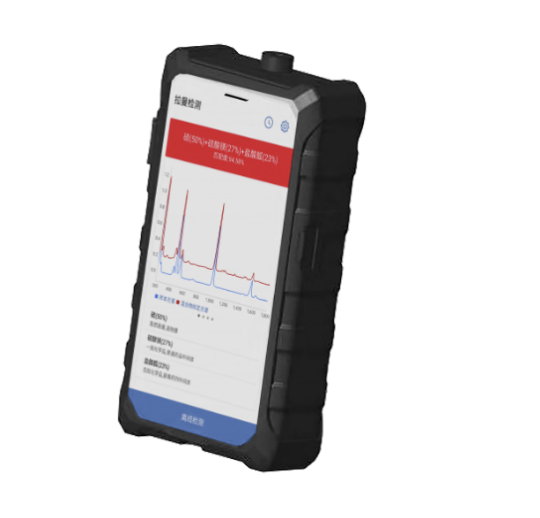

Two,Cloud-intelligent handheld area-scanning drug analyzer

CloudOptek’s intelligent handheld area-scanning drug analyzer utilizes high-frequency controllable digital micromirror arrays for surface scanning(DMD)Technology,During Raman detection, laser no longer focuses on a fixed point,Can follow predefined trajectories for scanning detection,And can be configured4*4mmRectangular areas of any size within the range,Matches scanning area to sample shape.Completely resolves ignition/explosion risks from fixed lasers when detecting flammable/explosive items,Simultaneously avoids molecular damage caused by high-energy lasers,Accuracy in analyzing powdered mixtures can be significantly enhanced.Also supports point-array Raman measurement,Also known as Raman imaging,Achieve near10Mixture measurements.Excels in dark or mixed drug samples,Precursor chemicals,Will play a significant role in detecting novel psychoactive substances such as fentanyl.

High-frequency area-scanning technology addresses dark-colored drugs,Detection challenges of new psychoactive substances, precursor chemicals, flammable materials, and mixtures that are difficult to measure.Raman detectors identify unknown hazardous chemicals using lasers,Enhance energy through laser focusing,Thereby enhancing device sensitivity.However, due to the high intensity and concentration of the focused laser beam,For potassium permanganate,White phosphorus,Dark-colored drugs such as red phosphorus,Risk of molecular damage from high-energy lasers when detecting precursor or energetic materials,Enables simple Raman detectors to effectively analyze dark-colored drugs,Greatly limited in precursor detection applications.Additionally,Since powdered mixed drugs are inherently non-uniform,Traditional focused single-point detection leads to inaccurate mixture ratio identification,Thus requiring high-frequency area-scanning Raman technology,Avoids excessive energy concentration that could damage molecular structures(Avoid ignition),Can also identify mixtures and even perform precise ratio analysis.

High-frequency area-scan Raman detection technology,AdoptsDMDDigital micromirror,Controls different anchors of the same micromirror by adjusting external voltage intensity/Hinge dimensions tilt micromirrors to specific angles,Reflects incident light at specific angles.Rapidly modulates incident laser beam in two directions within Raman detector,Achieves laser beam steering,Implements image scanning via Lissajous pattern algorithms.

Uses high-frequency area scanning technology,Will bring the following advantages:

①　Enables high-speed laser scanning over samples,Reduces energy density at single points on samples,Prevents molecular structure damage from overheating,Or risk igniting samples;

②　Under Lissajous rapid scanning mode,Point-to-area scanning enables multi-point average measurements of samples,Avoid false negatives in mixtures caused by uneven sample distribution,Makes mixture ratios more accurate;

③　In area imaging mode,Enables point-array measurements on substance surfaces,Achieves Raman imaging of substance surfaces,For mixture drugs,New psychoactive substances (NPS),More precise analysis of precursor chemicals themselves.

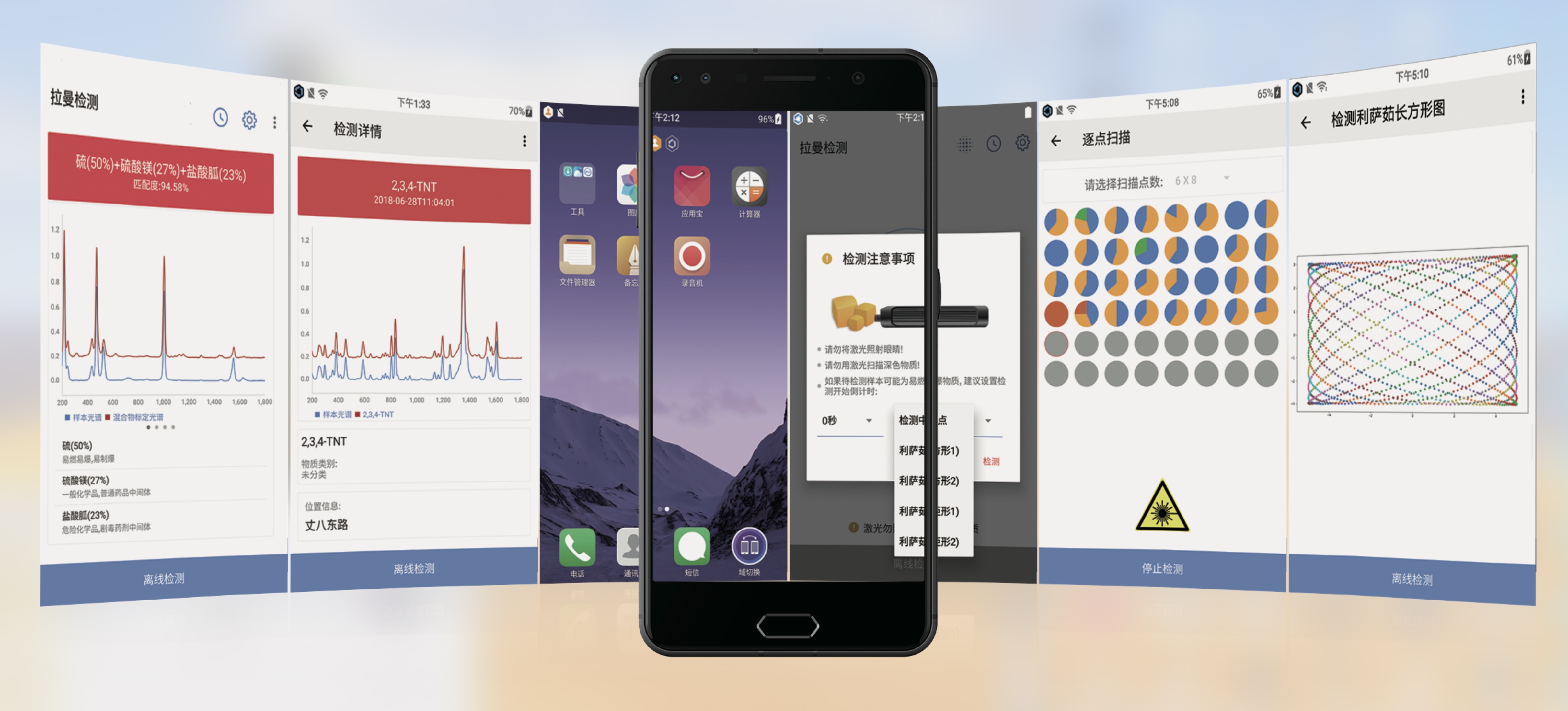

Based on cloud-intelligent detection technology,Integrated cloud platform,Big data,Multiple technologies including artificial intelligence,Will bring the following advantages:

①　Real-time updates to obtain latest database;

②　Real-time software and feature upgrades;

③　Traditional algorithms combined with AI big data analysis,Higher accuracy,Faster speed;

④　Enables centralized control during detection,Real-time monitoring of personnel work dynamics,Device operational status,Movement trajectory,Detection records uploaded in real time,Also enables multi-dimensional big data statistics in the cloud,Capable of issuing risk warnings.

Research on cloud-based intelligent high-frequency area-scan Raman detection technology,Innovatively adoptsDMDTechnology,Ensures minimal laser energy accumulation at each sample point,Captures sample images while detecting substances,Effectively avoids ignition risks from concentrated laser energy;Employs mixture type and ratio recognition algorithms,Breaks the limitation of Raman spectrometers to single-component substances,Filled this technological gap.

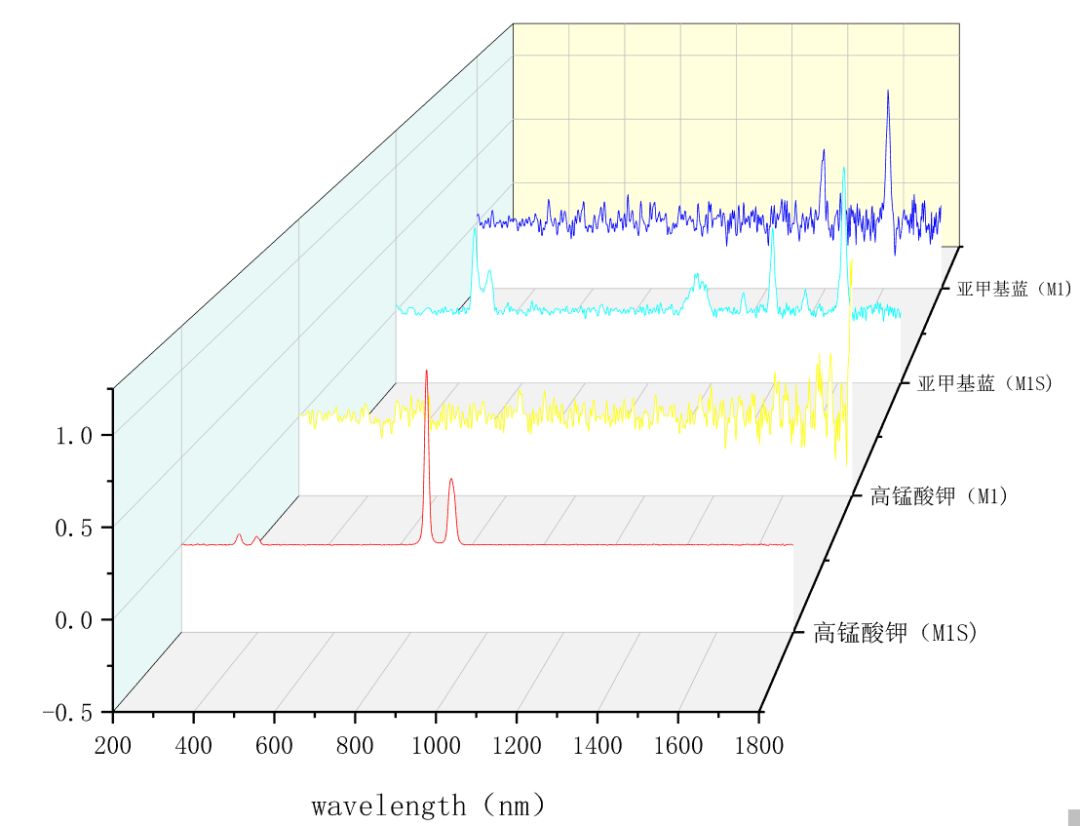

Common dark substances such as methyl red were tested using both conventional Raman drug analyzers and CloudOptek intelligent handheld area-scanning drug analyzers,Chromium picolinate,Methylene blue,Detection of potassium permanganate,Conventional Raman drug analyzers yield spectra with poor signal-to-noise ratios,Partial characteristic peaks missing,And also exhibits Raman peaks from molecular degradation,Cannot be used for substance identification;Cloud-intelligent handheld area-scanning drug analyzer yields high signal-to-noise ratio spectra,Distinct characteristic peaks,Compared to other handheld Raman devices, no spurious peaks,Can be used for dark-colored substances and drug detection.Additionally, in anti-fluorescence interference mode, it can detect heroin,Recognition of fentanyl and other fluorescence-interfering substances.

Intelligent high-frequency area-scan Raman detector on2020Year2Won the highest honor in optics again at the SPIE Photonics West exhibition in the U.S. in Month"Prism Award"(Prism Award),First company worldwide to win consecutively for two years"Prism Award"Company.

Powerful database

Total database substances10000Multiple types,As needed,For drugs,Precursor chemicals,New psychoactive substances like fentanyl can be arbitrarily expanded,Meets user requirements.Currently includes known:

Drugs and precursors200+Types

New psychoactive substances such as fentanyl200+Types,Among them, fentanyl30Multiple types

Military chemical warfare agents20+Types

Explosives nearby200+Types

Other toxic hazardous chemicals8000Multiple types

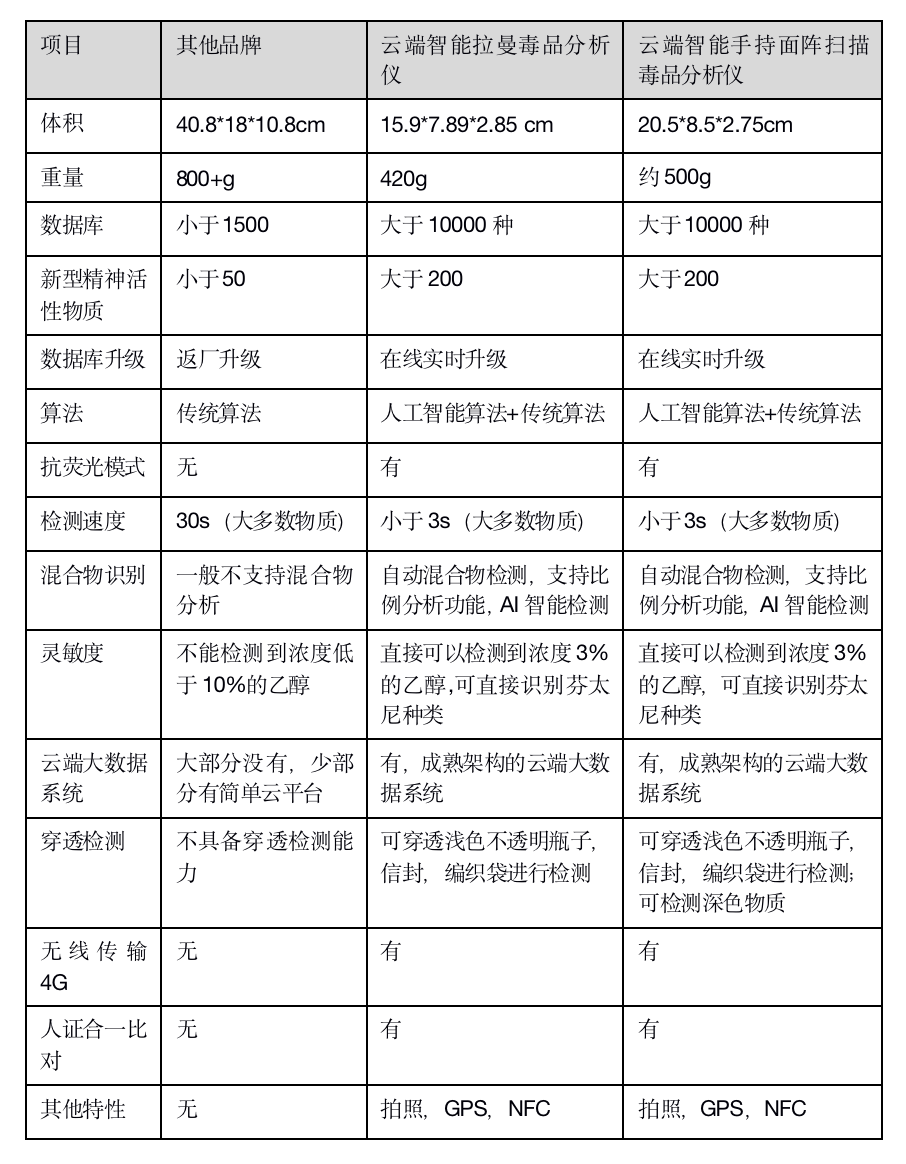

Product comparison
