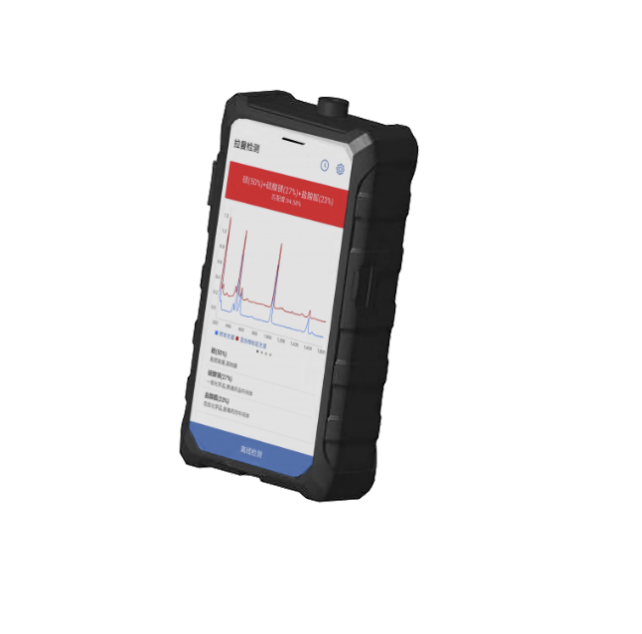

785Handheld high-frequency area-scanning Raman detectorM1S

       Cloud-intelligent handheld area-scanning Raman detectorM1S(785nm)Utilizes digital micromirror devices(DMD)Technology,So the laser no longer focuses on a fixed point,But continuously moves along predefined trajectories,Breakthrough solution to technical challenges like excessive focal energy on dark substances causing damage or ignition,Making it suitable for detecting dark-colored and flammable/explosive chemicals,Expanded Raman technology applications.

        Area scanning within controlled regions measures average spectra across the entire surface,Solves large measurement errors in mixtures and missed detections of suspicious substances.Enables Raman imaging detection,Enhanced detection achieved in this mode10Mixtures of [number]+ components.

        Detectable substances:Solid,Liquid chemicals

Drugs:Heroin,Methamphetamine,KPowder,Papaverine,Cocaine...

Precursor chemicals:Ketamine,Phenobarbital,Diazepam(Diazepam)...

fentanyl:106Types of fentanyl+2Precursors

New psychoactive substances:105Types

Chemical agents:GB(Sarin),VX(VX),GD(Soman),HD(Mustard gas)...

Hazardous chemicals:Gasoline,Kerosene,Diesel,Xylene,Pyridine,n-Propyl acetate,2-MEK...

Explosives:TNT,RDX,PETN

Pharmaceuticals:Light-colored solids, powders, tablets, and certain concentration solutions

Jewelry and gemstones:Diamond,Hetian jade,Jadeite,Pearl,Gemstones...

        For dark-colored substances,Conventional Raman yields poor signal-to-noise ratio in spectra,Partial characteristic peaks missing,Even spectral peaks from molecular degradation may appear;DMDRaman spectra offer high signal-to-noise ratio,Distinct characteristic peaks,No spurious peaks,Proves area-scanning Raman is suitable for dark substances and flammable/explosive hazardous material detection.

Scanning mode:Rapid area scanning,Single-point detection,Point-by-point scanning,Customizable matrix scanning

Scanning area: <5*5mm(Arbitrarily configurable)

Scan frequency:>50HZ

Measurement mode:Fast area-scan average spectrum or array measurement

Laser wavelength:785 nm±0.02nm;

Resolution:8-11 cm^-1;

Laser power:1-500 mW Continuously adjustable;

Spectral range:150-3400 cm^-1Customizable,Maximum coverage range2700cm^-1;

Battery level:5700mAh(Continuous usage10Hours);

Detection duration:<3 s(Methanol,Ethanol,Acetone, etc.);

Network connectivity:4G/Wi-Fi/Bluetooth;

Positioning:GPS;

Screen:5.7Inch capacitive screen,2KHigh-resolution display;

Camera:8MP+16MP;

False positive/negative rate<1%;

Limit of detection≤5%(Ethanol)
